UL20745 Industrial Automation Connect Spring Cable

Brand Name : WCH Cable

Model Number : UL20745

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD0.33 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Spring Style : UL20745

Application : Industrial automation connect

Conductor : High purity copper wire

Rated Temperature : 60 Deg C

Insulation : AWM Appliant Material

Rated Voltage : 60V

Jacket Material : Polyurethane PUR

Working Standard : UL758, UL1581

Contact Now

UL20745 Industrial Automation Connect Spring Cable

Conductor: High purity copper wire, tinned or bare, stranded or solid.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket: Polyurethane PUR
Standard: Appliance Wiring Material UL758.
Rated Temperature: 60 deg C.
Rated Voltage: 60V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: industrial automation interconnection.
Outstanding Feature: Very excellent quality & long flex life.

UL Style Number Core Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20745 2C 30 7/0.100 0.23 0.80 0.76 3.20 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.40 239.00
2C 26 7/0.16 0.23 1.00 0.76 3.60 150.00
2C 24 11/0.16 0.23 1.10 0.76 3.80 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.20 59.40
2C 20 21/0.178 0.23 1.50 0.76 4.60 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.20 23.20
2C 16 26/0.25 0.23 2.00 0.76 5.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 3.40 381.00
3C 28 7/0.127 0.23 0.90 0.76 3.50 239.00
3C 26 7/0.16 0.23 1.00 0.76 3.80 150.00
3C 24 11/0.16 0.23 1.10 0.76 4.00 94.20
3C 22 17/0.16 0.23 1.30 0.76 4.40 59.40
3C 20 21/0.178 0.23 1.50 0.76 4.80 36.70
3C 18 34/0.178 0.23 1.80 0.76 5.50 23.20
4C 30 7/0.100 0.23 0.80 0.76 4.80 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.10 239.00
4C 26 7/0.16 0.23 1.00 0.76 5.30 150.00
4C 24 11/0.16 0.23 1.10 0.76 5.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.00 59.40
4C 20 21/0.178 0.23 1.50 0.76 6.50 36.70
5C 30 7/0.100 0.23 0.80 0.76 5.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 5.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 5.60 150.00
5C 24 11/0.16 0.23 1.10 0.76 5.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 6.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 5.30 381.00
6C 28 7/0.127 0.23 0.90 0.76 5.60 239.00
6C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
6C 24 11/0.16 0.23 1.10 0.76 6.20 94.20

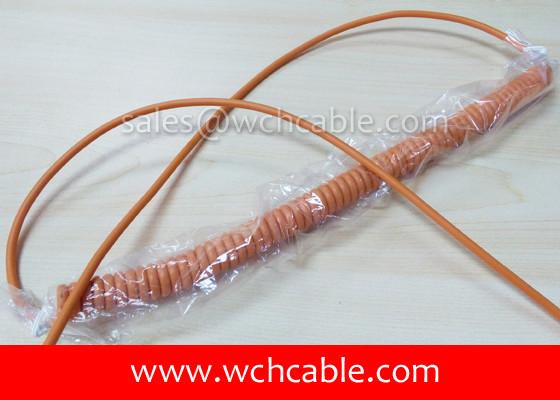

UL20745 Industrial Automation Connect Spring Cable
